Components List
Arduino IDE SetUp
👉 Click Here: Arduino IDE Installation
👉 Click Here: Setup Guide on PCBCUPID
Components List
| No. | Picture | Name | Use Case | Price | Quantity |
|---|---|---|---|---|---|
| 1 |  | Breadboard | A breadboard is a reusable platform for quickly prototyping and testing electronic circuits without soldering, ideal for learning, experimentation, and development. | ₹60 | 15 |
| 2 |  | Soil Humidity sensor | A soil humidity sensor measures the moisture content in soil, ideal for automated irrigation systems and plant health monitoring in gardening and agricultural projects. | ₹50 | 11 |

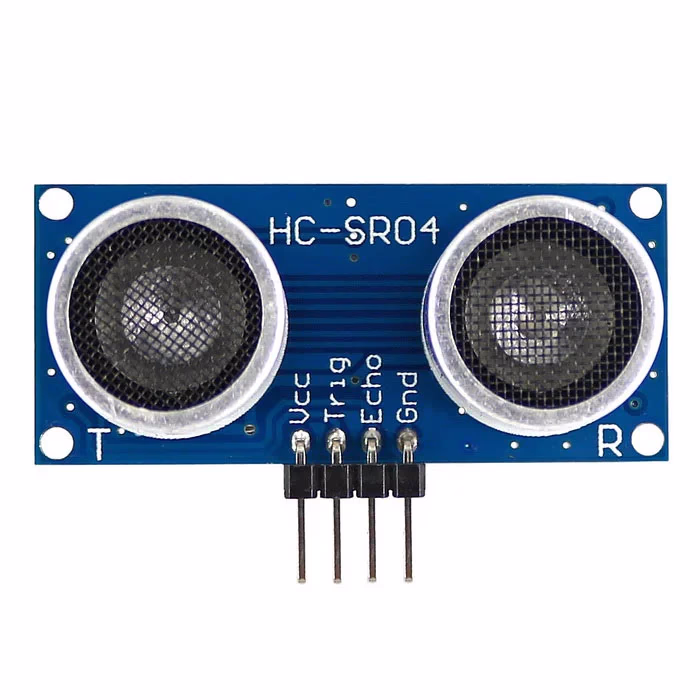

| 3 |  | Ultrasonic Sensor | An ultrasonic sensor measures distance by emitting sound waves and detecting their echo, ideal for obstacle detection, distance measurement, and automation projects. | ₹99 | 14 |

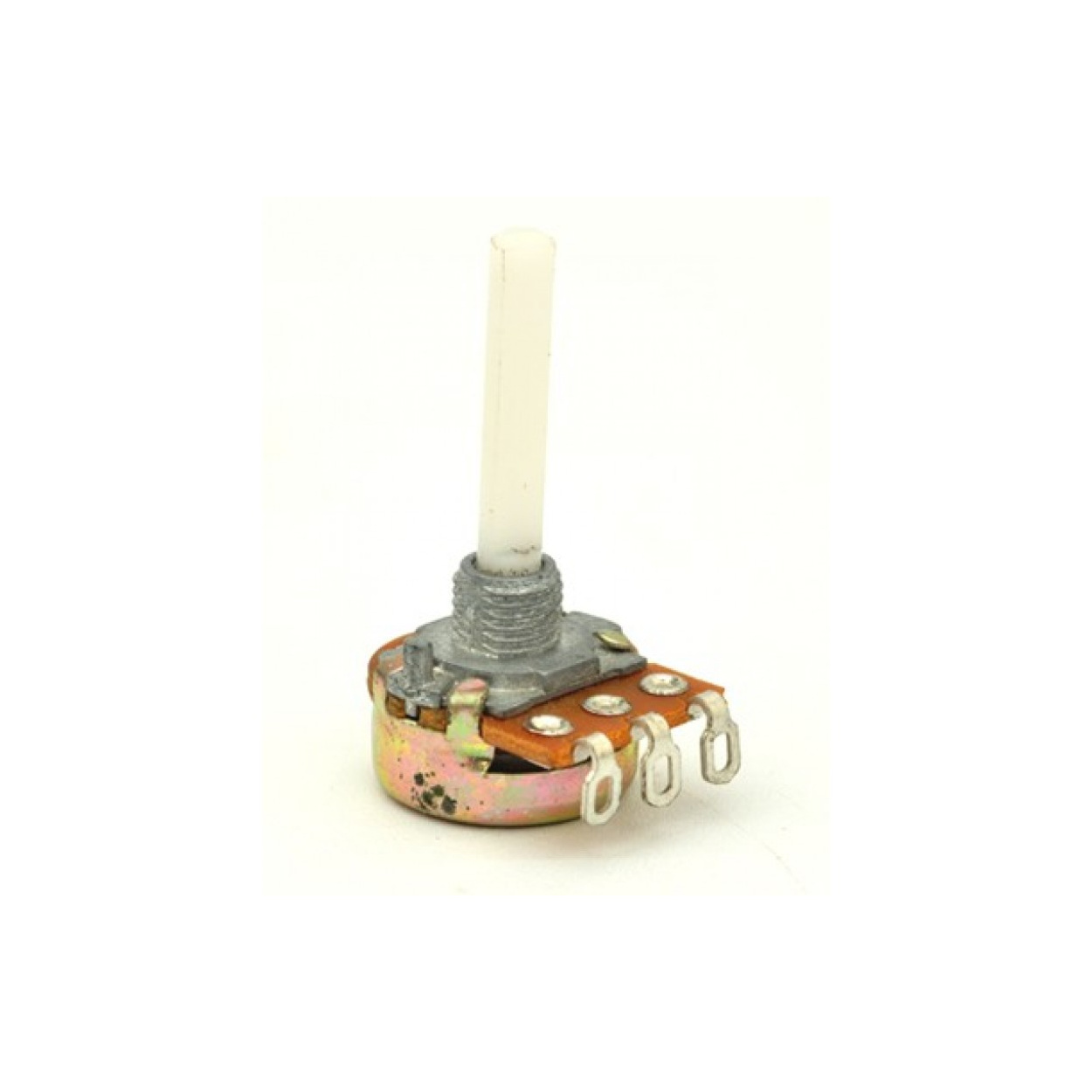

| 4 |  | 1k potentiometer | A variable resistor used to adjust voltage or control signal levels in electronic circuits. | ₹25 | 14 |
| 5 |  | 10k Potentiometer | Potentiometers are adjustable resistors used to control voltage or signal levels in electronic circuits, commonly found in volume controls, sensor tuning, and variable settings. | ₹25 | 11 |

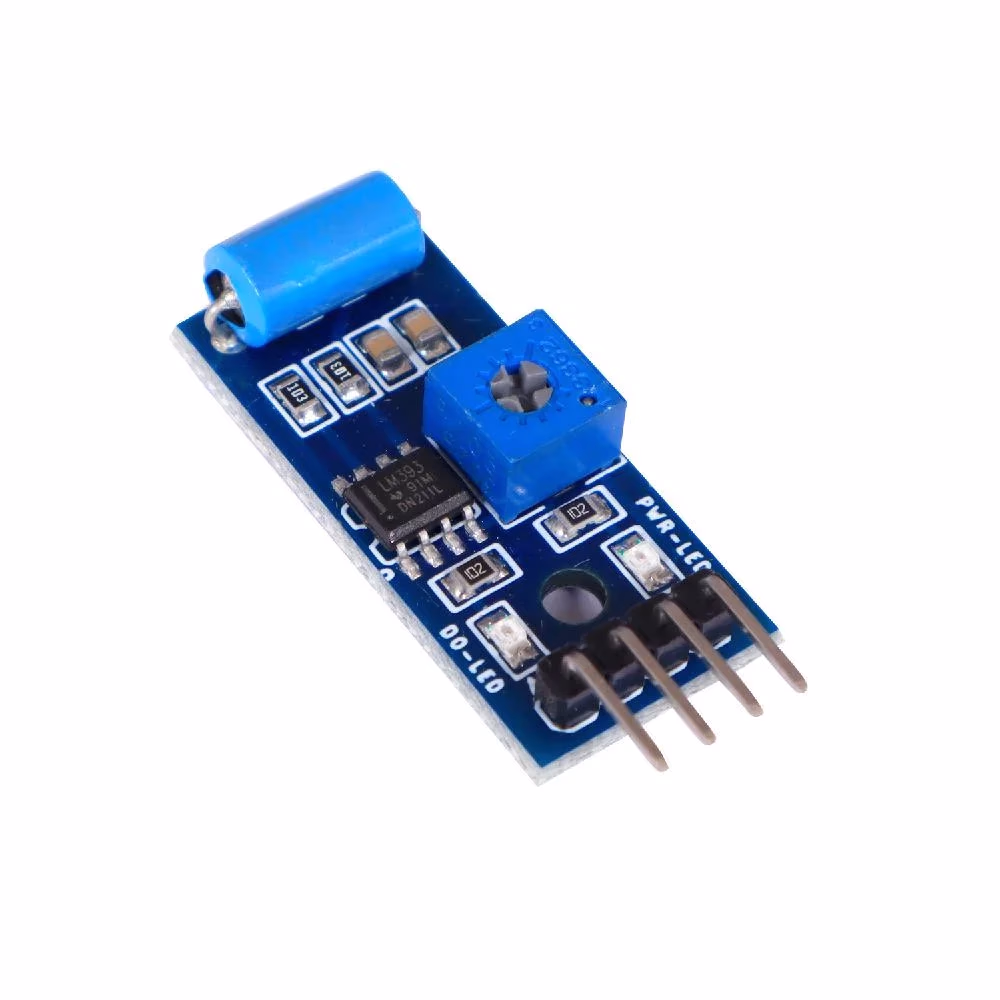

| 6 |  | Vibration Sensor | A digital vibration sensor module with adjustable sensitivity and a built-in LM393 comparator, designed to detect shocks or movements (3.3–5 V, logic output). | ₹75 | 15 |
| 7 |  | IR Sensor | An IR (Infrared) sensor detects objects or motion by emitting and receiving infrared light, commonly used in obstacle detection, line following, and proximity sensing. | ₹45 | 19 |

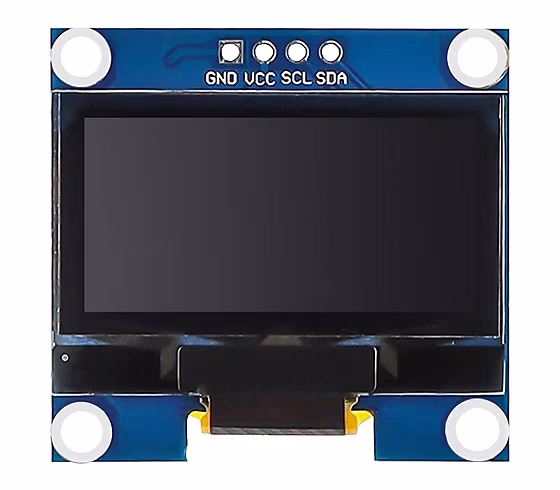

| 8 |  | OLED Display | 👉Read More:OLED-Display | ₹200 | 8 |

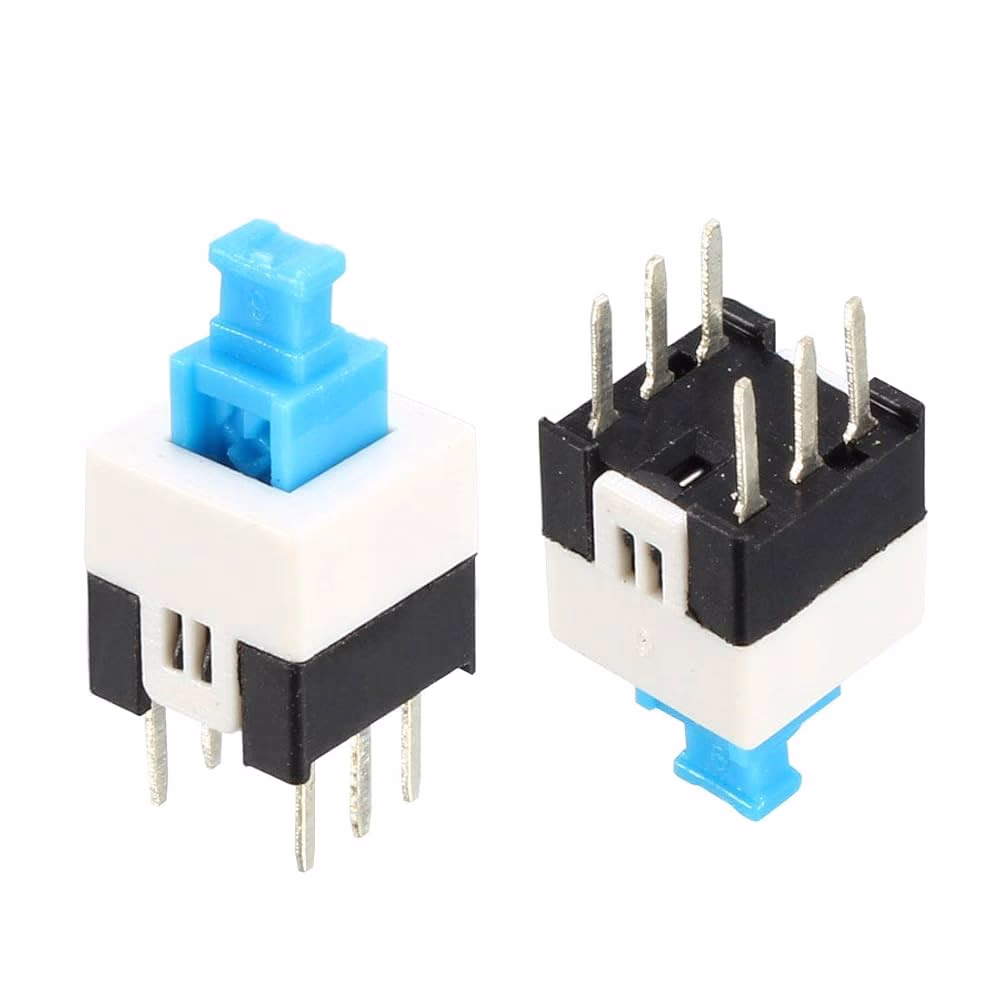

| 9 |  | Tactile Push Button Switch Self Lock(DPdT Switch) | A self-locking tactile push button switch that maintains its state until pressed again, ideal for toggling functions in electronic circuit | ₹10 | 19 |
| 10 |  | 1N4001 Diode | The 1N4001 is a general-purpose silicon rectifier diode used for blocking or converting AC to DC in low-voltage power applications, with a peak reverse voltage of 50V. | ₹2 | 80 |
| 11 |  | PNP Transistor (BC557) | The BC557 is a general-purpose PNP bipolar junction transistor commonly used for switching and low-power amplification in electronic circuits. | ₹2 | 40 |

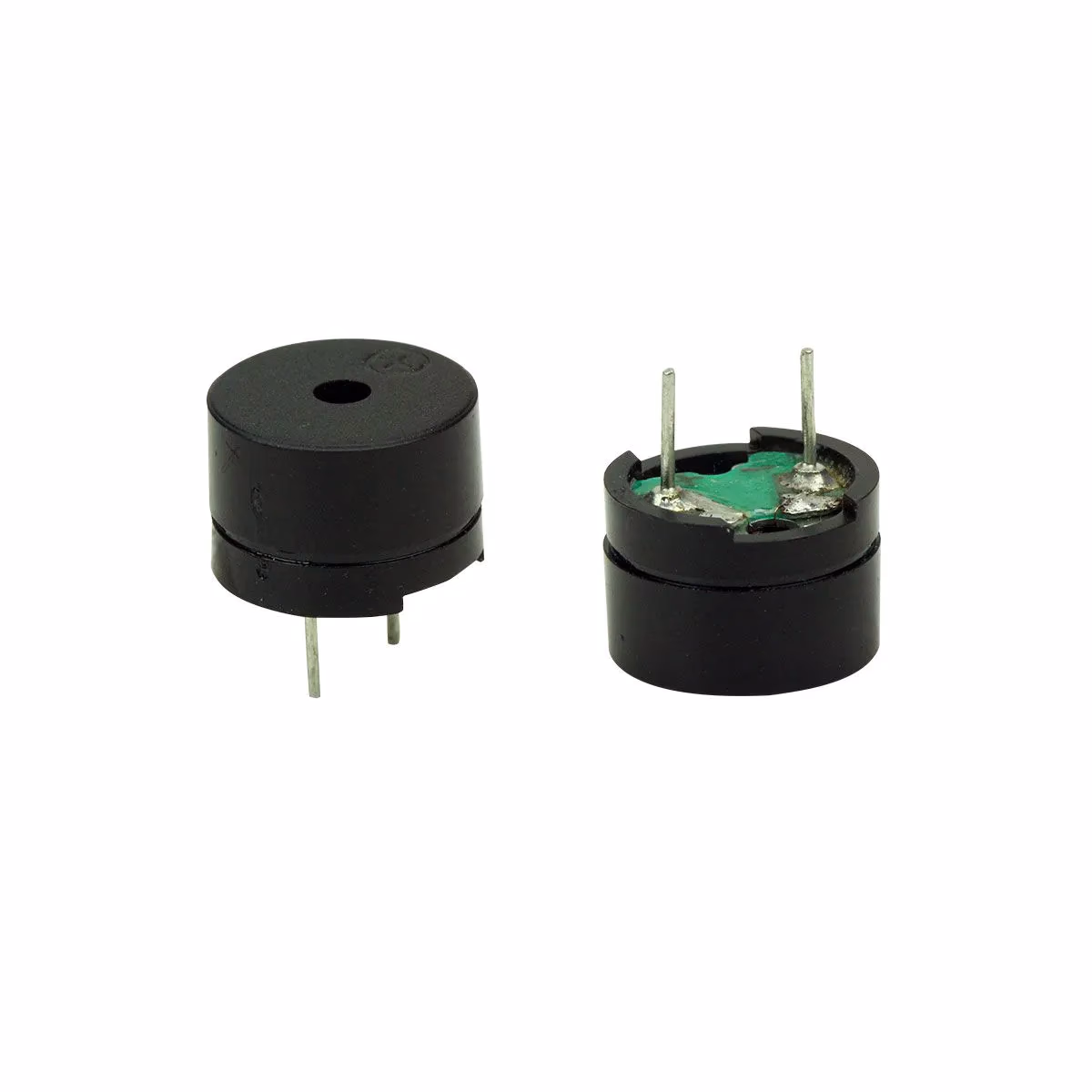

| 12 |  | Buzzer | 👉Read More:Buzzer | ₹20 | 12 |

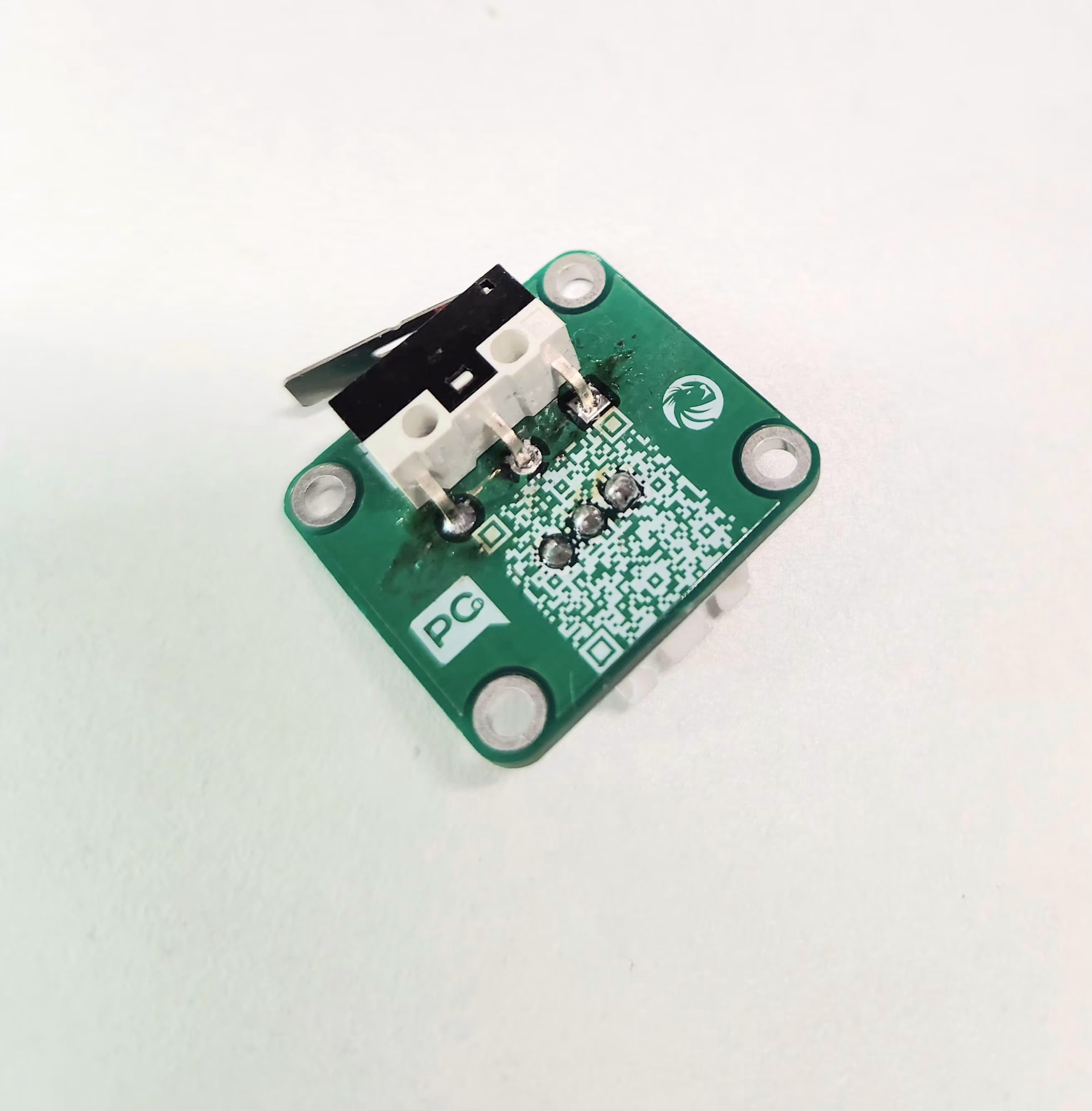

| 13 |  | Limit Switch | A limit switch is an electromechanical device used to detect the presence or position of an object, often serving as a safety or control trigger in automation and robotics systems. | ₹99 | 32 |
| 14 |  | LDR(5mm) | The 5mm LDR (Light Dependent Resistor) changes its resistance based on light intensity, making it ideal for light-sensing applications. | ₹15 | 27 |
| 15 |  | Condenser mic | A sensitive condenser microphone module that captures clear audio signals, ideal for sound detection and voice input applications. | ₹20 | 10 |

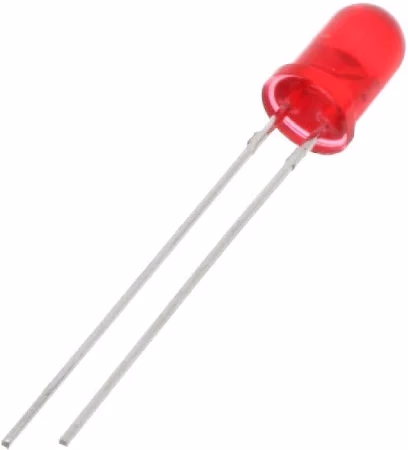

| 16 |  | 5mm Red LED | A standard 5mm red LED that emits bright red light, commonly used for indicators, status signals, and visual feedback in electronic circuits. | ₹5 | 35 |
| 17 |  | NPN Transistors (BC547) | The BC547 is a general-purpose NPN bipolar junction transistor used for switching and amplification in low-power electronic circuits | ₹2 | 30 |

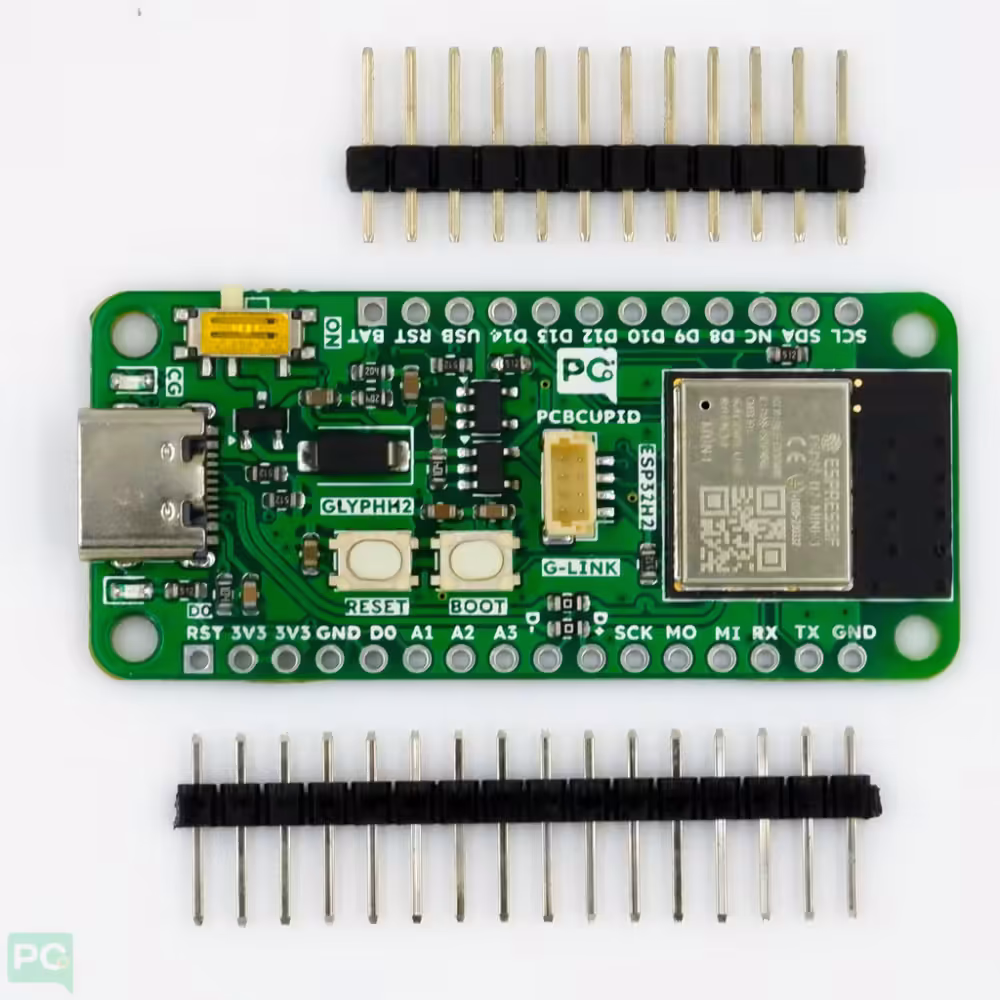

| 18 |  | Glyph H2 | 👉 Read More:Glyph H2 👉 Shop here: Glyph H2 | ₹530 | 10 |
| 19 |  | Glyph C3 | 👉 Read More:Glyph C3 👉Shop here: Glyph C3 | ₹470 | 10 |

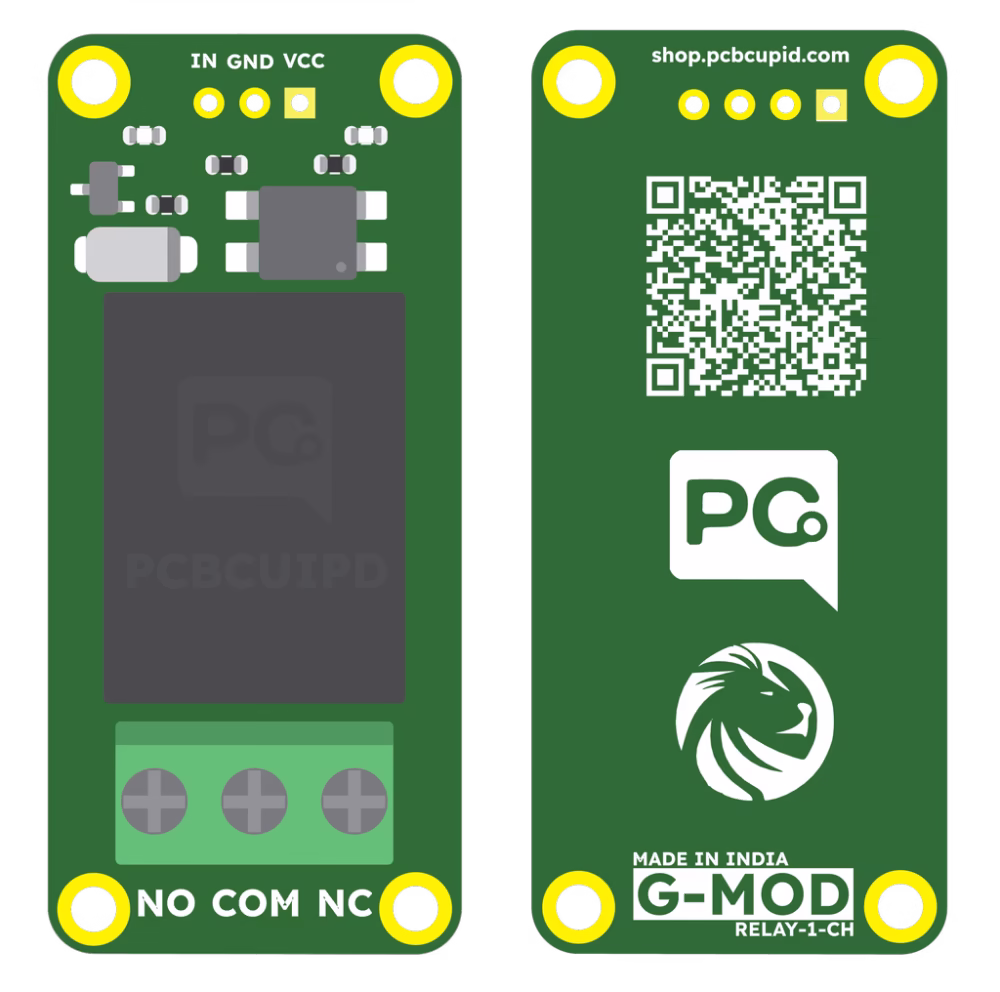

| 20 |  | G-MOD : 1 Channel 5V Relay Module with Optocoupler | 👉Read More:1ch-Relay 👉Shop here:1ch-Relay | ₹80 | 15 |
| 21 |  | FR4 – High Quality Zero board PCB (Perfboard) | A versatile prototyping board with pre-drilled holes, ideal for building and testing electronic circuits 👉Shop here: Glyph H2 | ₹45 | 29 |
| 22 |  | G-MOD : 2 Channel 5V Relay Module with Optocoupler | 👉Read More:2ch-Relay 👉Shop here:2ch-Relay | ₹180 | 7 |

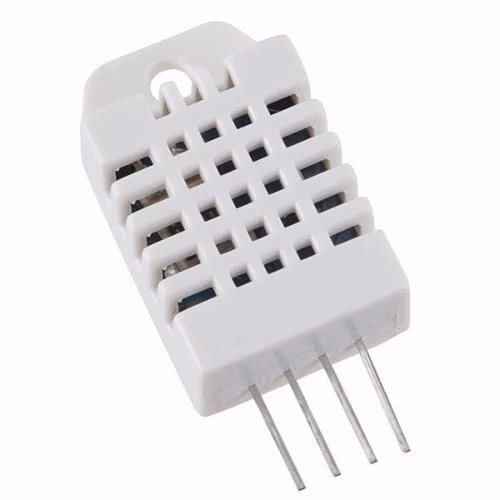

| 23 |  | DHT 22 - Humidity and Temperature Sensor | A high-accuracy digital sensor for measuring temperature and humidity, suitable for indoor environmental monitoring projects. | ₹212 | 7 |

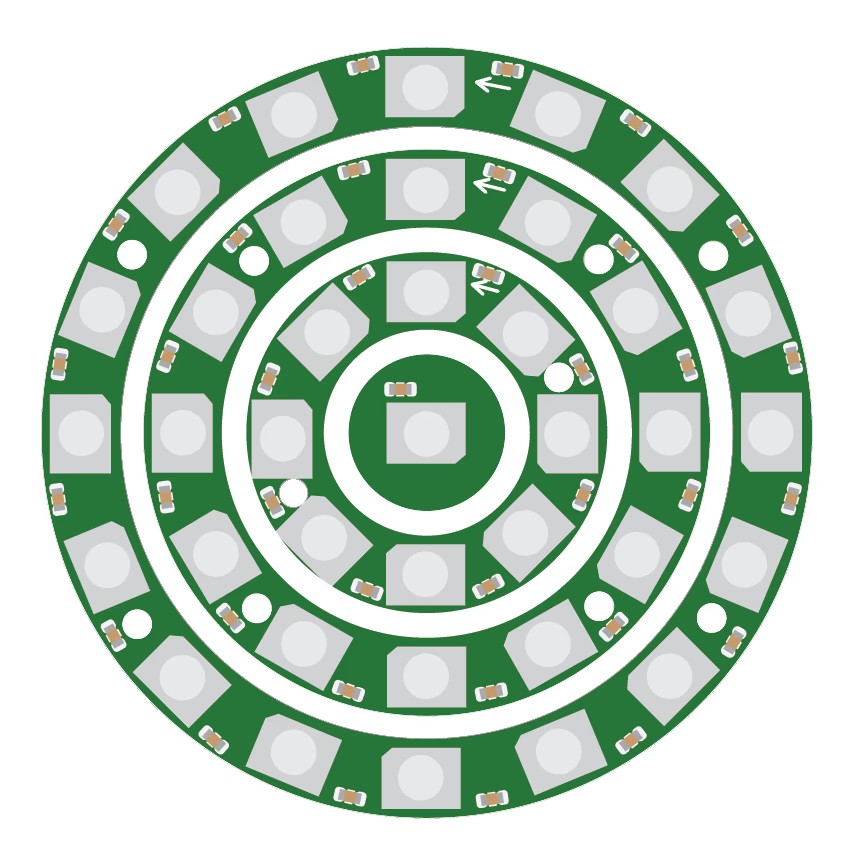

| 25 |  | G-MOD : WS2812B Addressable RGB LED RING [37 LED] | 👉Read More:G-MOD 👉Shop here:G-MOD | ₹500 | 5 |

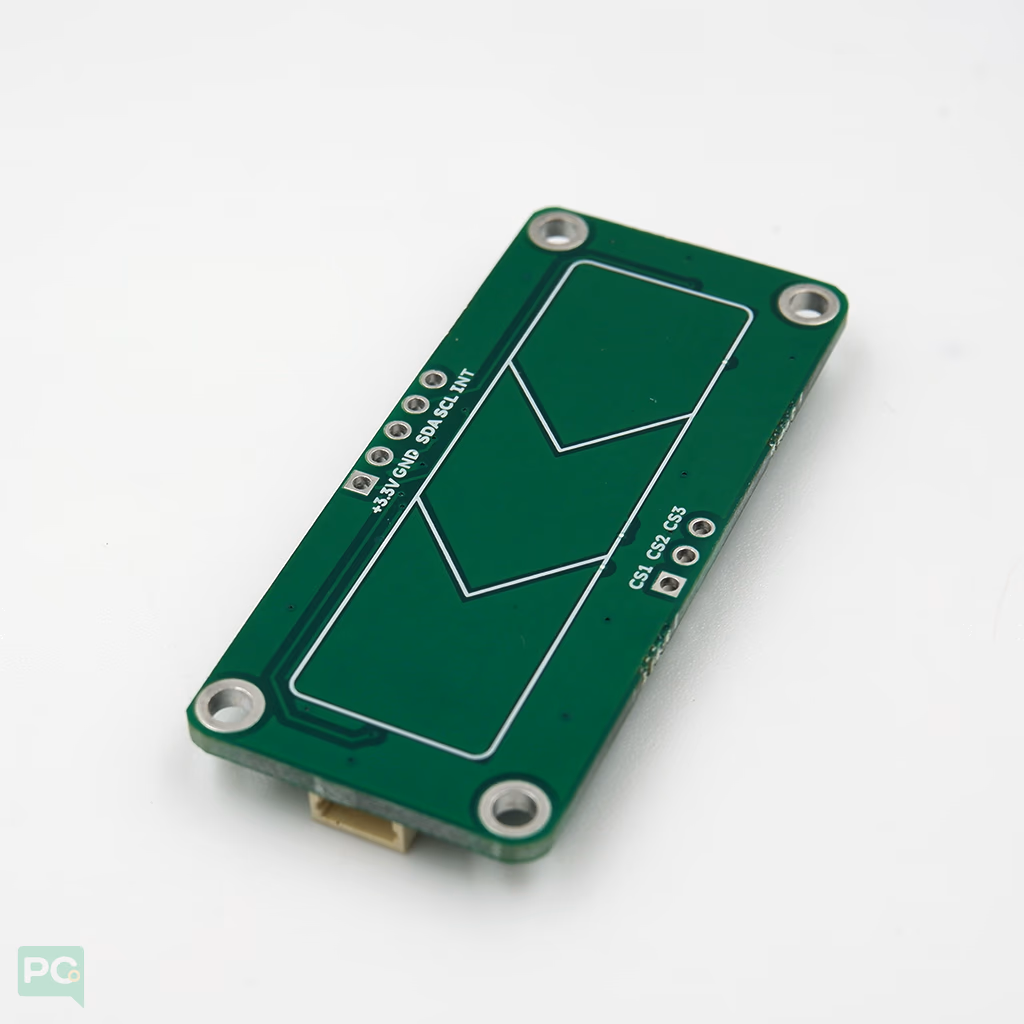

| 26 |  | G-Sense : Capacitive Touch Slider – CAP1203 | 👉Read More: Touch Slider 👉Shop here: Touch Slider | ₹140 | 10 |
| 27 |  | G-MOD : PCF8563 Precision Real-Time Clock (RTC) Module | 👉Read More:1ch-Relay 👉Shop here:1ch-Relay | ₹130 | 10 |
| 28 |  | 3 Pin JST Male Right Angle Connector | A 3-pin JST male right-angle connector ideal for secure, low-profile wire-to-board connections in space-constrained electronic designs. | ₹10 | 100 |
| 29 |  | DC Motor Single Shaft | A compact DC motor with a single output shaft is commonly used for driving wheels, fans, or mechanical parts. | ₹100 | 8 |
| 30 |  | wheels BO Motor | BO motor wheels provide stable movement for robotics and DIY vehicles, easily attachable to BO motors. | ₹25 | 20 |

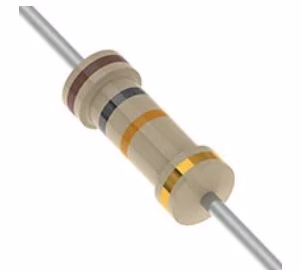

| 31 |  | 10k resistor | A 10k resistor is widely used as a pull-up or pull-down resistor to keep digital input pins at a stable logic level. | ₹2 | 100 |

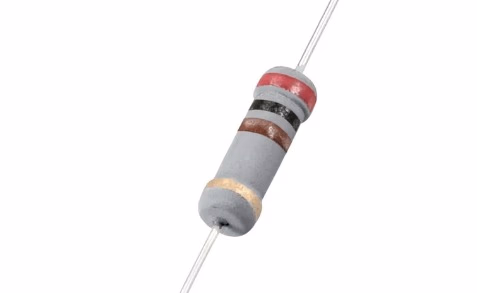

| 32 |  | 200ohm resistor | A 200Ω resistor is typically used to limit current to LEDs or other low-power components to prevent damage. | ₹2 | 100 |
| 34 |  | Jumper wires (Male-male,female-female, male-female) | Jumper wires are short, insulated conductors used to connect components on a breadboard or between header pins without soldering. They come in male-to-male, male-to-female, and female-to-female types for versatile prototyping. | ₹1 | 500 |
| 35 |  | Bi Color LED | A 3-pin RGB LED that combines red, green, and blue emitters in one package, allowing mixed color output using PWM control. | ₹10 | 23 |
| 36 |  | Motor Driver IC- L293D | The L293D is a dual H-bridge motor driver IC that allows bidirectional control of two DC motors or one stepper motor using microcontrollers. | ₹30 | 20 |
| 37 |  | 7 segment display | A numeric 7-segment display with a common cathode configuration, used for displaying digits in counters, timers, and digital readouts. | ₹12 | 16 |
| 38 |  | Wires | Wires are essential components used to establish electrical connections between different parts of a circuit. They carry current and signals, enabling communication and power transfer in electronic systems. | ₹15 | 20 |
| 39 |  | Large push button | A large push button is used as a user-friendly high-visibility input control for tasks like starting/stopping machines, emergency shutoff, or easy manual triggering in prototypes. | ₹10 | 54 |

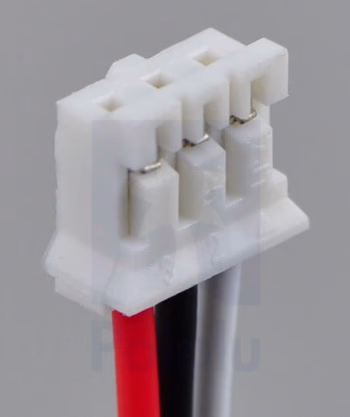

| 40 |  | 3 pin JST female | A 3-pin JST 90° female connector is commonly used for compact right-angle connections to sensors, servos, or power/signal interfaces on PCBs where vertical space is limited. | ₹15 | 100 |
