Components List

Arduino IDE SetUp

👉 Click Here: Arduino IDE Installation

👉 Click Here: Setup Guide on PCBCUPID

Components List

No.	Picture	Name	use case	Price
1		Glyph C3(headers not soldered)	👉 Read More:Glyph C3 👉Shop here: Glyph C3	Rs.434

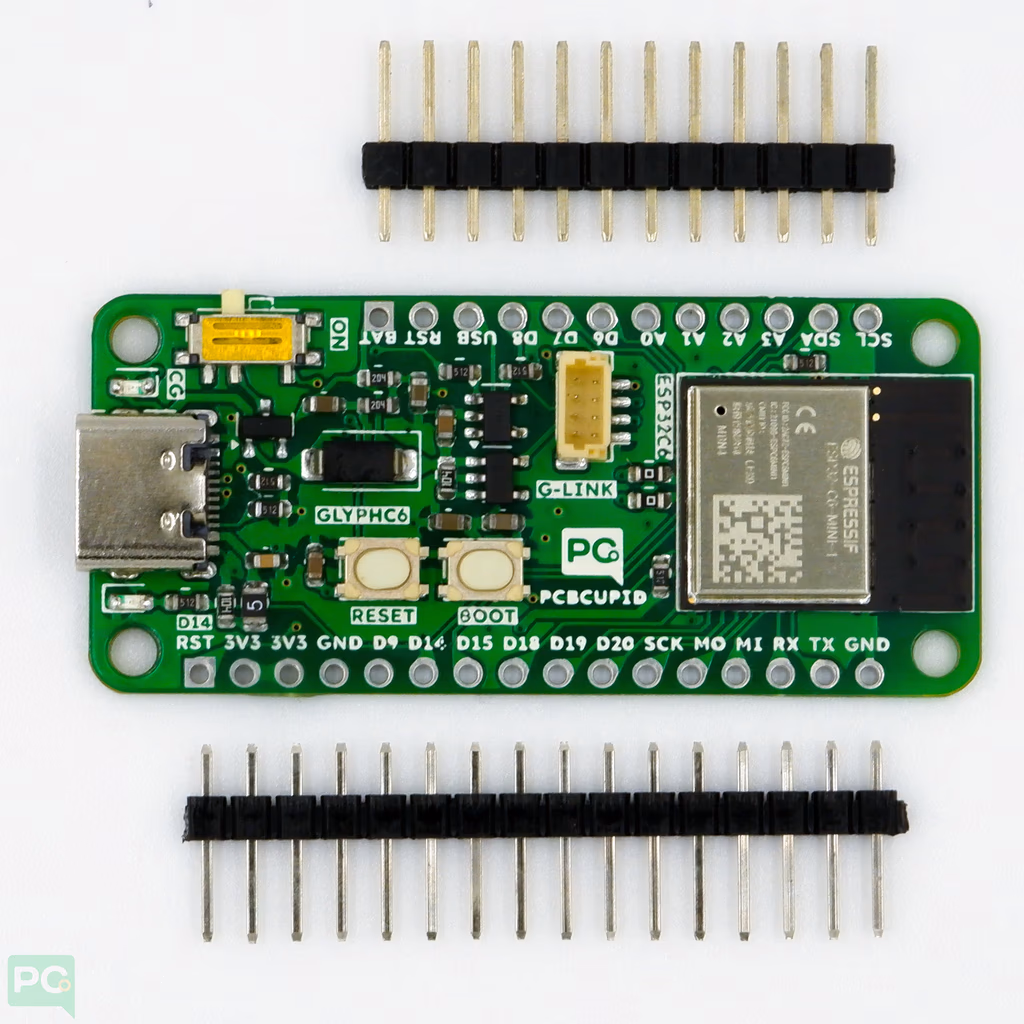

2		Glyph C6(soldered)	👉 Read More:Glyph C6 👉 Shop here: Glyph C6	Rs.552
3		Glyph H2 (soldered)	👉 Read More:Glyph H2 👉 Shop here: Glyph H2	Rs.529
4		FR4 – High Quality Zero board PCB (Perfboard)	A versatile prototyping board with pre-drilled holes, ideal for building and testing electronic circuits 👉Shop here: Glyph H2	Rs.35

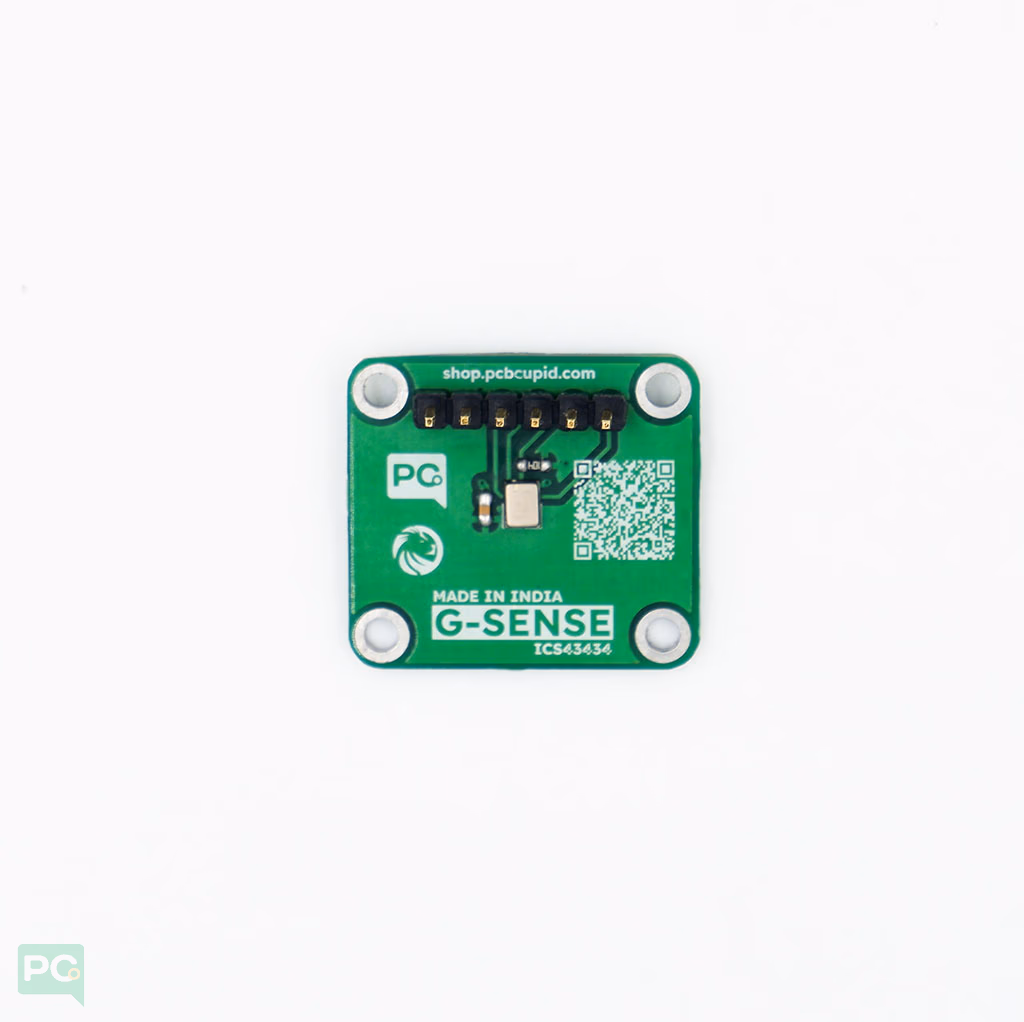

5		G-SENSE : ICS-43434 MEMS High Precision Omnidirectional Microphone I2S	👉Read More: 1ch-Microphone 👉Shop here: 1ch-Microphone	Rs.218
6		G-SENSE : ICS-43434 2CH MEMS High Precision Omnidirectional Microphone I2S	👉Read More: 2ch-Microphone 👉Shop here: 2ch-Microphone	Rs.319

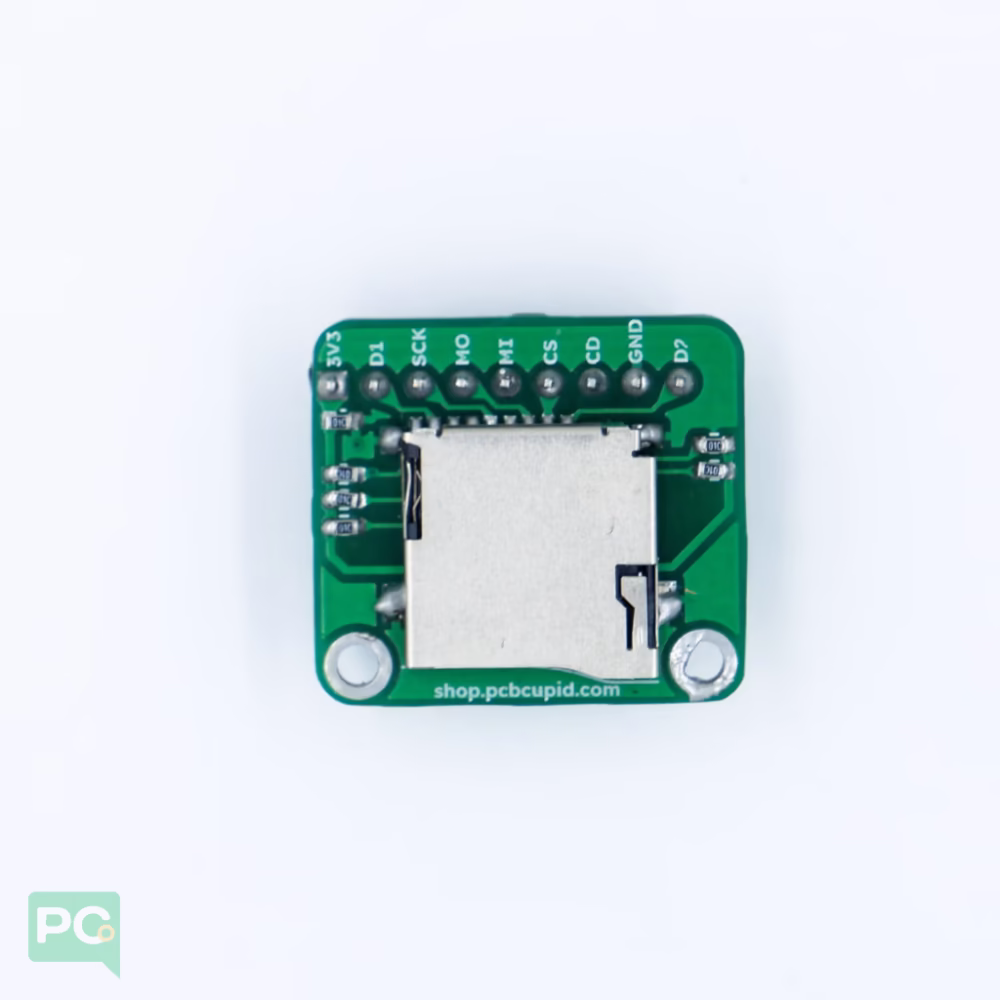

7		G-MOD : Micro SD SPI/SDIO/SDMMC Card Breakout Board – 3.3V	👉Read More:G-MOD 👉Shop here:G-MOD	Rs.99
8		G-MOD : 1 Channel 5V Relay Module with Optocoupler	👉Read More:1ch-Relay 👉Shop here:1ch-Relay	Rs.85
9		G-MOD : 2 Channel 5V Relay Module with Optocoupler	👉Read More:2ch-Relay 👉Shop here:2ch-Relay	Rs.179
10		OLED Display (SSD1306)	👉Read More:OLED-Display	Rs.220
11		Buzzer	👉Read More:Buzzer	Rs.15
12		Condenser mic	A sensitive condenser microphone module that captures clear audio signals, ideal for sound detection and voice input applications.	Rs.20
13		Tactile Push Button Switch Self Lock(DPdT Switch)	A self-locking tactile push button switch that maintains its state until pressed again, ideal for toggling functions in electronic circuits.	Rs.10
14		Right angle tactile push button	A compact right-angle tactile push button switch, designed for edge mounting and user-friendly input in compact electronic devices.	Rs.5

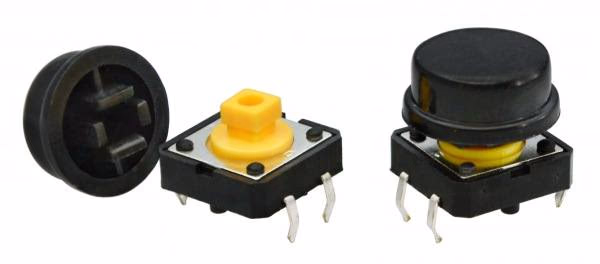

15		Push button with Cap	A standard push button switch with a cap for easy pressing, commonly used for user input.	Rs.20
16		TS04-66-65-BK-160-SMT Tactile Switch (Push button small)	A compact SMT tactile switch offering reliable, low-profile push-button functionality for PCB-mounted applications.	Rs.20
17		OS202011MS2QN1 Slide switch SPDT	A compact SPDT slide switch is designed for PCB mounting, offering reliable on-off-on functionality in low-profile form factor.	Rs.89

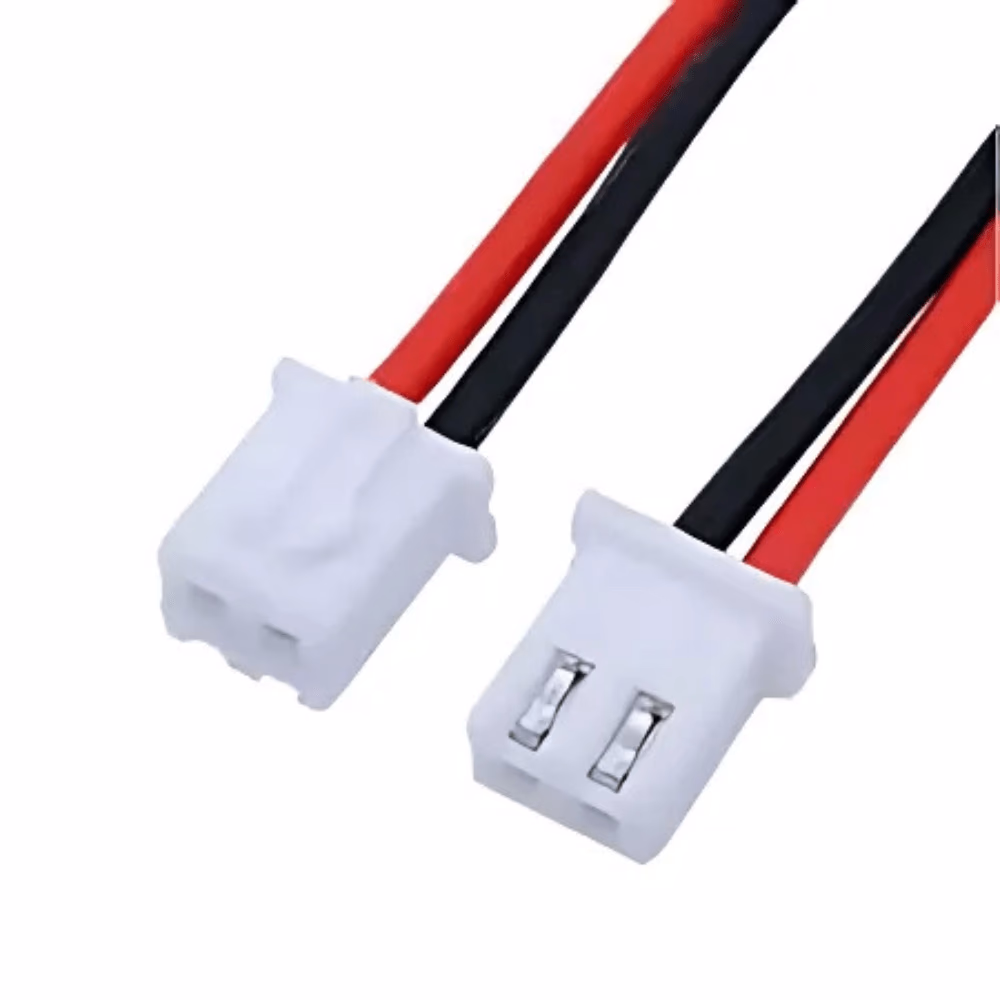

18		RMC 2pin Female connector	A compact 2-pin female RMC connector designed for secure, low-voltage wire-to-board connections in electronic projects	Rs.9
19		RMC 3 Pin Female connector	A compact 3-pin female RMC connector offering secure and reliable low-voltage wire-to-board connections in electronics projects.	Rs.10

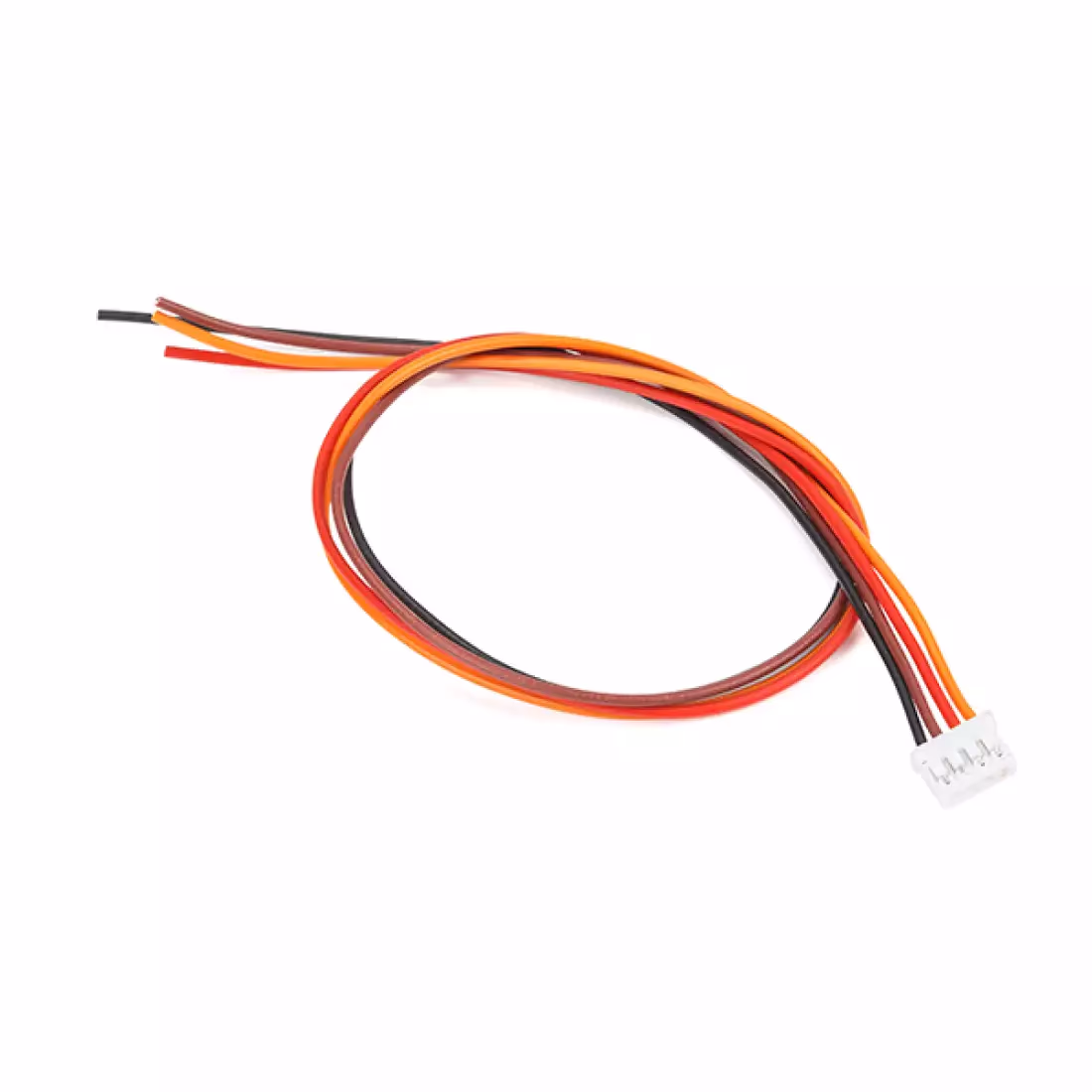

20		RMC 4 Pin Female connector	A compact 4-pin female RMC connector providing secure and organized low-voltage wire-to-board connections for seamless integration in electro.	Rs.11
21		2 Pin Male Straight Single Row WTB Connector	A 2-pin male straight single-row WTB (Wire-to-Board) connector designed for easy and secure low-voltage connections in compact electronic assemblies.	Rs.5
22		3 Pin Male Straight Single Row WTB Connector	A 3-pin male straight single-row WTB (Wire-to-Board) connector, ideal for reliable and space-efficient signal or power connections in electronic circuits	Rs.5

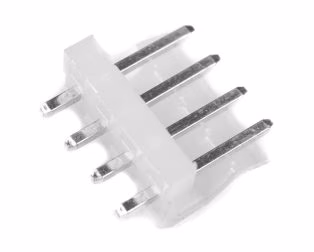

23		4 Pin Male Straight Single Row WTB Connector	A 4-pin male straight single-row WTB (Wire-to-Board) connector, perfect for compact and secure multi-line signal or power connections in electronic projects.	Rs.5

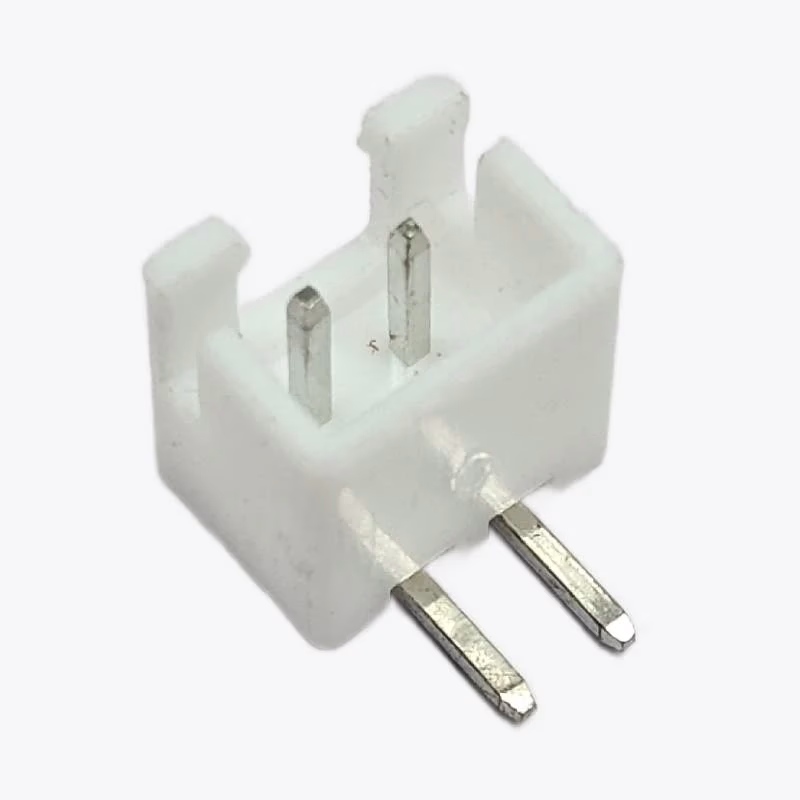

24		2 Pin JST Male Right Angle Connector	A 2-pin JST male right-angle connector designed for compact, secure wire-to-board connections in low-voltage electronic applications.	Rs.5
25		3 Pin JST Male Right Angle Connector	A 3-pin JST male right-angle connector ideal for secure, low-profile wire-to-board connections in space-constrained electronic designs.	6

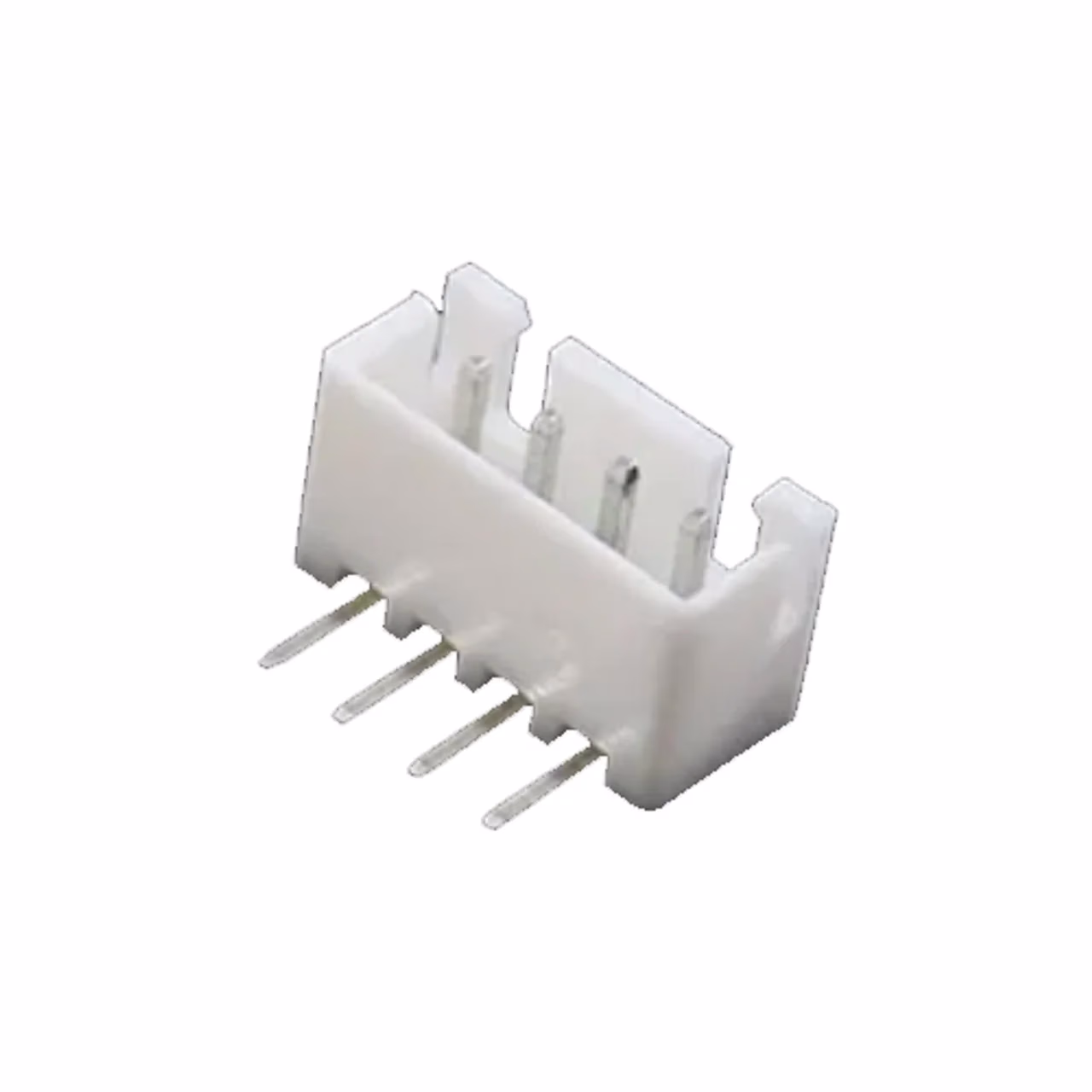

26		4 Pin JST Male Right Angle Connector	A 4-pin JST male right-angle connector designed for space-saving, reliable wire-to-board connections in compact electronic assemblies.	Rs.7
27		5mm Red LED	A standard 5mm red LED that emits bright red light, commonly used for indicators, status signals, and visual feedback in electronic circuits.	Rs.3

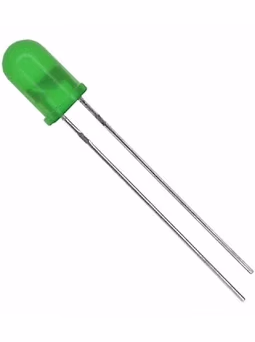

28		5mm Green LED	A standard 5mm green LED that emits bright green light, ideal for status indicators, signal displays, and general-purpose electronics.	Rs.3

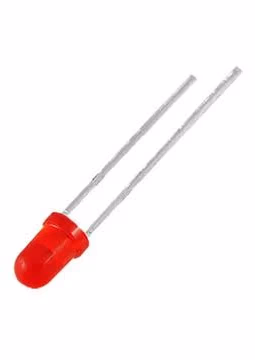

29		3mm Red LED	A compact 3mm red LED that emits bright red light, perfect for space-constrained indicator and signal applications in electronic circuits.	Rs. 2
30		RGB LED	A 3-pin RGB LED that combines red, green, and blue emitters in one package, allowing mixed color output using PWM control.	Rs.10
31		7 segment display	A numeric 7-segment display with a common cathode configuration, used for displaying digits in counters, timers, and digital readouts.	Rs.12
32		Resistor Box	A resistor assortment box containing a wide range of resistor values, ideal for prototyping, circuit design, and quick access during electronics projects	Rs.70
33		Capacitor Box	A capacitor assortment box with various capacitance values, perfect for prototyping, circuit tuning, and quick access in electronics development.	Rs.125
34		1N4001 Diode	The 1N4001 is a general-purpose silicon rectifier diode used for blocking or converting AC to DC in low-voltage power applications, with a peak reverse voltage of 50V.	Rs.4
35		NPN Transistors (BC547)	The BC547 is a general-purpose NPN bipolar junction transistor used for switching and amplification in low-power electronic circuits	Rs.2
36		PNP Transistor (BC557)	The BC557 is a general-purpose PNP bipolar junction transistor commonly used for switching and low-power amplification in electronic circuits.	Rs.2
37		Potentiometer	Potentiometers are adjustable resistors used to control voltage or signal levels in electronic circuits, commonly found in volume controls, sensor tuning, and variable settings.	Rs.25
38		DC Motor Single Shaft	A compact DC motor with a single output shaft is commonly used for driving wheels, fans, or mechanical parts	Rs.70
39		Motor Driver IC- L293D	The L293D is a dual H-bridge motor driver IC that allows bidirectional control of two DC motors or one stepper motor using microcontrollers.	Rs.30
40		Servo Motors	Servo motors are precision-controlled motors with built-in feedback, ideal for tasks requiring accurate angular positioning, such as in robotics, RC vehicles, and automation projects	Rs.150
41		DHT 22 - Humidity and Temperature Sensor	A high-accuracy digital sensor for measuring temperature and humidity, suitable for indoor environmental monitoring projects.	Rs.199
42		Ultrasonic Sensor	An ultrasonic sensor measures distance by emitting sound waves and detecting their echo, ideal for obstacle detection, distance measurement, and automation projects.	Rs.112
43		IR Sensor	An IR (Infrared) sensor detects objects or motion by emitting and receiving infrared light, commonly used in obstacle detection, line following, and proximity sensing.	Rs.40
44		Limit Switch	A limit switch is an electromechanical device used to detect the presence or position of an object, often serving as a safety or control trigger in automation and robotics systems	Rs.99
45		Soil Humidity sensor	A soil humidity sensor measures the moisture content in soil, ideal for automated irrigation systems and plant health monitoring in gardening and agricultural projects.	Rs.70
46		SW420 Vibration Sensor	A digital vibration sensor module with adjustable sensitivity and a built-in LM393 comparator, designed to detect shocks or movements (3.3–5 V, logic output).	Rs.75
47		ACS712-20A-Current sensor	The ACS712-20A is a Hall-effect-based current sensor that provides accurate analog voltage output proportional to AC or DC currents up to ±20A, ideal for monitoring power and load in electronic systems.	Rs.80
48		DRV5032 ultra low power digital-switch Hall Effect Sensor	It provides reliable digital switching with high sensitivity and minimal power consumption, making it suitable for applications like proximity sensing and position detection.	Rs.120
49		wheels BO Motor	BO motor wheels provide stable movement for robotics and DIY vehicles, easily attachable to BO motors.	Rs.25
50		LIMIT SWITCH(RIGHT ANGLE)	The Limit Switch (Right Angle) is a compact mechanical switch used to detect position or movement limits in devices, commonly used in robotics and automation.	Rs.40
51		LDR(5mm)	The 5mm LDR (Light Dependent Resistor) changes its resistance based on light intensity, making it ideal for light-sensing applications.	Rs.20
52		Breadboard	A breadboard is a reusable platform for quickly prototyping and testing electronic circuits without soldering, ideal for learning, experimentation, and development.	Rs.119
53		Jumper wires (Male-male,female-female, male-female)	Jumper wires are short, insulated conductors used to connect components on a breadboard or between header pins without soldering. They come in male-to-male, male-to-female, and female-to-female types for versatile prototyping.	Rs.70
54		5V 1A Adaptor	A 5V 1A adapter is a compact power supply unit that delivers 5 volts at up to 1 amp current, suitable for powering small electronics like microcontrollers, sensors, and development boards.	Rs.150
55		DC Power Adapter Connector	A DC female power adapter connector allows easy and secure connection of external power supplies (like 5V or 12V adapters) to electronic circuits or devices.	Rs.25
56		Male header pins	Male header pins are straight pins used to create pluggable connections on PCBs, commonly used for interfacing modules, sensors, and jumper wires.	Rs.10
57		Female header pins	Female header pins are socket-style connectors used on PCBs to receive male pins, ideal for modular connections with sensors, modules, or other components	Rs.10
58		Wires 1Meter	Wires are essential components used to establish electrical connections between different parts of a circuit. They carry current and signals, enabling communication and power transfer in electronic systems.	Rs.15
